MFR5011

Visit Product Series:

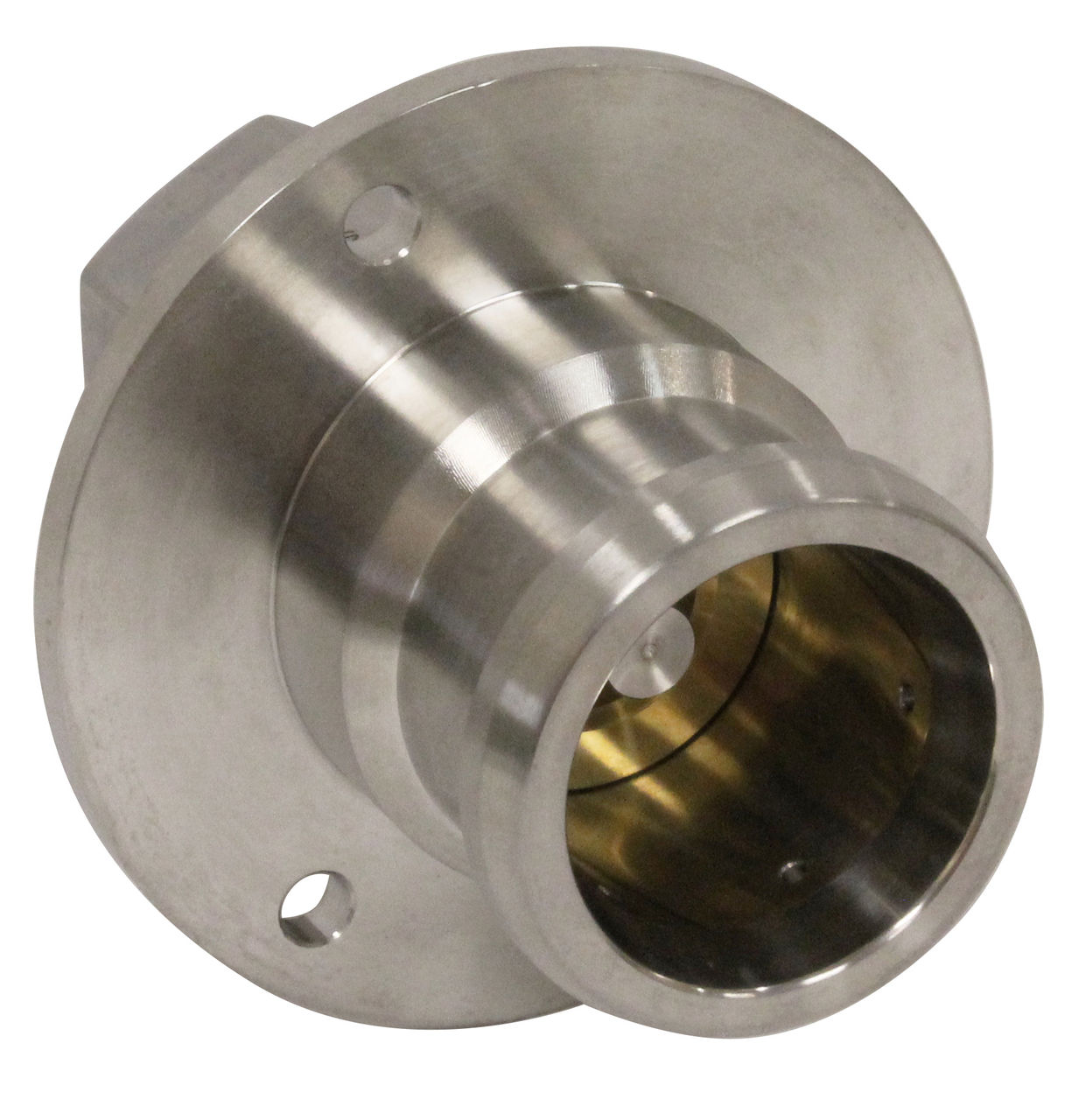

When mounted on the tank of a Liquid Natural Gas fueled vehicle, the LNG Tank Receptacle offers a safe and secure connection with the CryoMac(R) LNG Nozzle. In addition to providing a perfect fit with the CryoMac(R) LNG Nozzle, the LNG Tank Receptacle is engineered to offer the same safe and secure connection with many other LNG Nozzles.

Markets
Applications
LNG Flow Capacity, GPM (@ 250 PSIG) 50
Maximum Allowable Working Pressure (BARG) 38
Maximum Allowable Working Pressure (PSIG) 550
Maximum Temperature Rating (°C) 65
Maximum Temperature Rating (°F) 150
Minimum Temperature Rating (°C) -195
Minimum Temperature Rating (°F) -320
Outlet Connection (mm) 30
Connection Type M30x1.5
Material Details Spring Pin: Stainless Steel| Handle: Stainless Steel| O-rings: Fluorosilicone| Connector : Brass| Stem: Stainless Steel| Bonnet: Brass| Seat Disc: PTFE| Spring: Stainless Steel| Adjusting Screw: Stainless Steel| Poppet: Brass| Body: Brass
Product Type Receptacles
Product Warranty RegO 18 Month
Seat Material Type Soft
Units Imperial-Metric
