Visit Product Series:

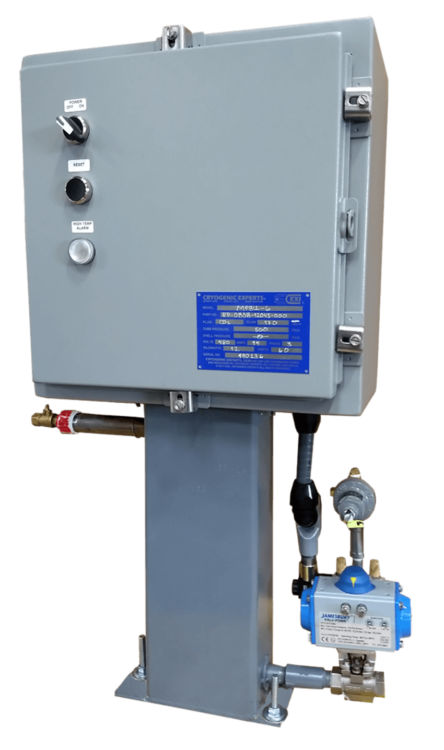

With several styles of electrically heated systems. This includes pressure build vaporizers for maintaining tank pressure as liquid is withdrawn, process vaporizers, and trim heaters. Units can be built with aluminum as the heat transfer agent, water as the heat transfer agent, and directly heated designs.

Markets
Applications
Advantages Minimal heat input when unit non-operational|Designed for cryogenic applications where minimal power is required|U.L. listed components|No frost build-up around heater terminals|Compatible with all cryogenic fluids|Three types — Pressure Builder, Vaporizer, Gas Heater|Ideal for small flow applications|Available in 120V to 575V configurations with power ratings from 2kW to 15 kW
Material Stainless Steel/carbon steel
Model Options MV-6|MPBU-6|MGH-6|MGH-6-DT
Options NEMA 3R electrical enclosure|Explosion-proof housings|Low outlet gas temperature cut-off/bypass systems with electric solenoid valves|Low-pressure cut-off system with electric solenoid valves|Solid-state relay (SSR) heater drive with digital PID controller|Temperature indicating controllers|High-pressure applications to 10,000 PSI|High purity applications
Product Type Minature Series
