BB9404T

Visit Product Series:

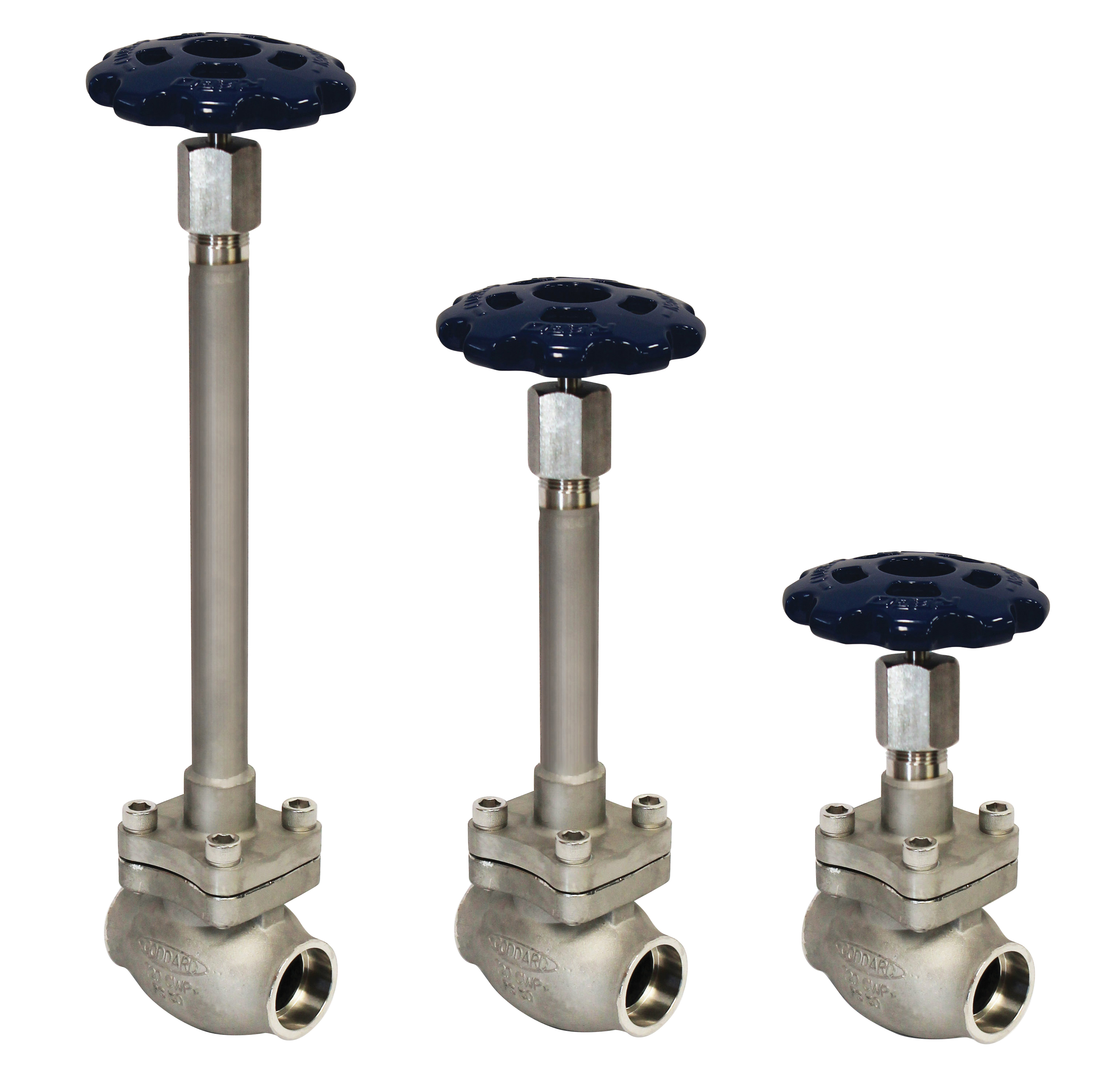

The BB Series globe valves are designed for handling of cryogenic liquids through bulk tanks, trucks, trailers, ISO-containers and piping configurations. Our time tested spring loaded stem packing and superior seat design provide for long life and easy maintenance. The BB Series globe valves are offered with brazed-in schedule 10 and 40 stainless steel pipe stubs. Also available in short stem version.

Markets

Applications

Certification

Documents

Installation Guides

Specifications

Height Open (in.) 14.4

Height Open (mm) 366

Inlet Connection (in.) 1/2"

Maximum Allowable Working Pressure (BARG) 50

Maximum Allowable Working Pressure (PSIG) 720

Maximum Temperature Rating (°C) +74

Maximum Temperature Rating (°F) +165

Minimum Temperature Rating (°C) -196

Minimum Temperature Rating (°F) -320

Nominal Size (in.) 1/2"

Outlet Connection (in.) 1/2"

Weight (kg) 3.7

Weight Lbs. 8.3

width_face_to_face diameter_english 2.9

width_face_to_face diameter_metric 73

Bonnet Type Bolted

Connection Type F. NPT x F. NPT

Cv 5.0

Inlet Connection (DN) 15

Kv 4.3

Material Details {'Bronze ASTM B61': 'Body', 'Brass ASTM B16': 'Upper Bonnet', 'Brass ASTM B283': 'Lower Bonnet', 'Stainless Steel ASTM A582': 'Stem', 'Stainless Steel ASTMA313': 'Spring', 'PTFE': 'Packaging', 'PTFE 25% Glass Fill': 'Gasket', 'PCTFE ASTM D1430': 'Seat disc ', 'Stainless Steel ASTM A320': 'Bonnet screws', 'Chromated Coated Ductile Iron ASTM A395': 'Handwheel'}

Nominal Size (DN) 15

Outlet Connection (DN) 15

Features & Benefits

Accessories & Kits

SK9404-82

(1) Gasket and (1) Seat Disc Assembly

SKU

BB9404-85

(1) Gasket, (1)Stem, (1) Bonnet & Tube Assembly, (1) Spring, (1) Washer, (1) Ring V Male, (3) Ring V Female, (1) O-ring, (1) Bonnet Nut, (4) Screw, (1) Handwheel, (1) Hex Nut, (1) Washer

SKU

SK9404-83

(1) Gasket

SKU

SK9404-81

(1) Gasket, (1) Spring, (1) Washer, (1) Ring V Male, (3) Ring V Female, (1) O-ring

SKU
