GS-210W-6S3

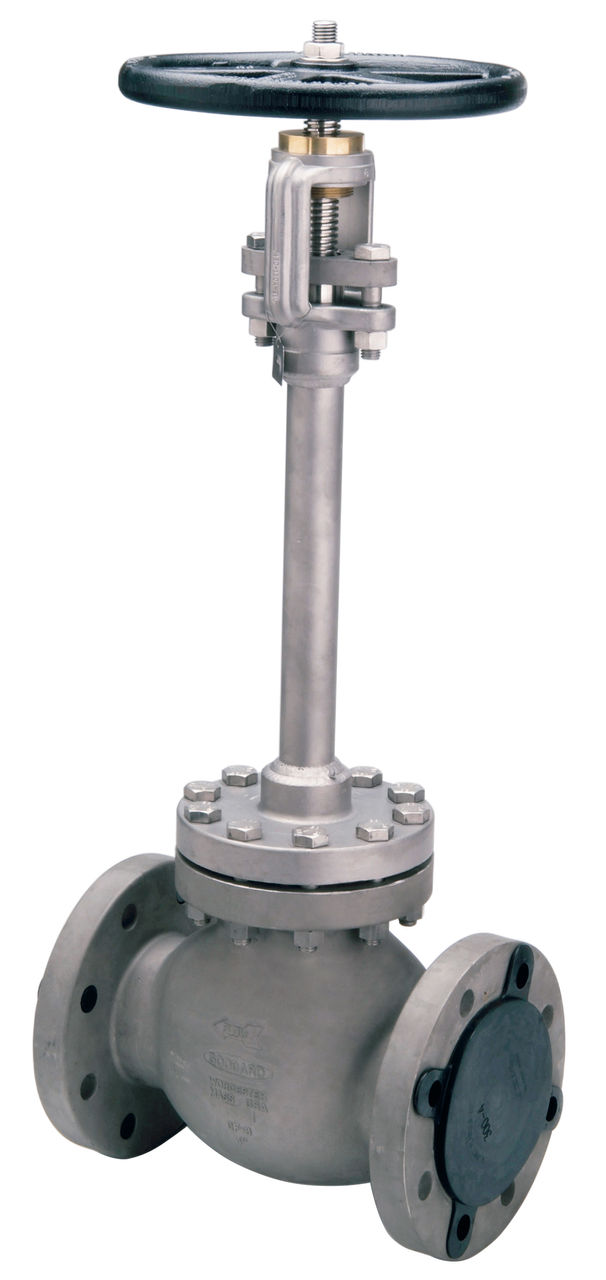

210 Series Globe Valves

Markets
Applications
Height Open (in.) 18-1/8"
Height Open (mm) 460
Inlet Connection (in.) 3/4"
Inlet Connection (mm) 20
K-value (in.) 12-3/4
K-value (mm) 323.85
Maximum Allowable Working Pressure (BARG) 50
Maximum Allowable Working Pressure (PSIG) 720
Maximum Temperature Rating (°C) 65
Maximum Temperature Rating (°F) 150
Minimum Temperature Rating (°C) -196
Minimum Temperature Rating (°F) -320
Nominal Size (in.) 3/4"
Outlet Connection (in.) 3/4"
Outlet Connection (mm) 20
Weight (kg) 6.8
Weight Lbs. 15
Width [Face to Face, Diameter] (in.) 5"
Width [Face to Face, Diameter] (mm) 127
ANSI Class 300#
Bonnet Type Bolted
Connection Type Socket Weld x Socket Weld
Cv 7.1
Inlet Connection (DN) 20
Kv 6
Material Details Spring Pin: Stainless Steel| Handle: Stainless Steel| O-rings: Fluorosilicone| Connector : Brass| Stem: Stainless Steel| Bonnet: Brass| Seat Disc: Fluorosilicone| Spring: Stainless Steel| Adjusting Screw: Stainless Steel| Poppet: Brass| Body: Brass
Nominal Size (DN) 20
Outlet Connection (DN) 20
Product Type Stainless Steel Cryogenic Globe Valves
Product Warranty RegO 10 Year
Seat Material Type Soft
Units Imperial-Metric
