DV4108SU08

Visit Product Series:

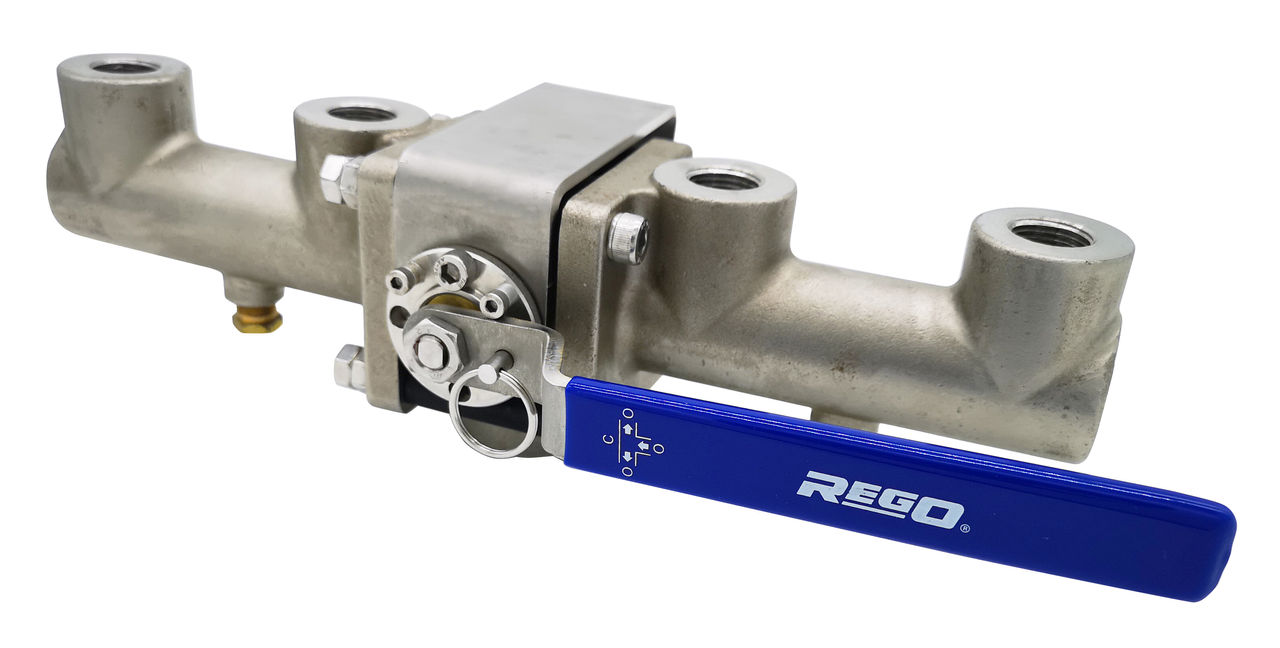

The DV4108 Diverter Valve Series provides a lightweight, simplified solution for the isolation of pressure relief valves during testing and change out of relief valves and burst discs without requiring evacuation of the vessel and guaranteeing that one port will be available to work during the operation. This all stainless steel diverter valve is ideal for use with oxygen, nitrogen, krypton, carbon dioxide, nitrous oxide, dinitrogen monoxide, carbon oxide, methane, ethane, ethylene, argon, and LNG.

Markets
Applications
Height [Closed] (in.) 3
Height [Closed] (mm) 76
Inlet Connection (in.) 1
Inlet Connection (mm) 25.4
Maximum Allowable Working Pressure (BARG) 50
Maximum Allowable Working Pressure (PSIG) 720
Maximum Temperature Rating (°C) 65
Maximum Temperature Rating (°F) 150
Minimum Temperature Rating (°C) -196
Minimum Temperature Rating (°F) -320
Nominal Size (in.) 1"
Outlet Connection (in.) 1"
Outlet Connection (mm) 25.4
Width [Face to Face, Diameter] (in.) 3.34
Width [Face to Face, Diameter] (mm) 85
ANSI Class 300#
Bonnet Type Bolted
Connection Type Thread NPTF
Inlet Connection (DN) 25
Material Details Ball: .316L Stainless Steel ASTM A276 (DIN 1.4006 )| Seat: Dyneon TFM 1600| End caps : 304 Stainless Steel ASTM A743 (DIN 1.4027)| Wave springs : Stainless Steel ASTMA313 (DIN 1.4544)| Wave spring washers: 304 Stainless Steel ASTM A182 (DIN 1.5415)| Packing _: Live Loaded PTFE| Stem: 316L Stainless Steel ASTM A276 (DIN 1.4006)| Lever.: 304 Stainless Steel ASTM A182 (DIN 1.5415)| Bracket: 304 Stainless Steel ASTM A182 (DIN 1.5415)| Body:316 Stainless Steel ASTM A351-CF-8M (DIN 1.4408)
Nominal Size (DN) 25
Outlet Connection (DN) 25
Product Type Stainless Steel Diverters & Diverter Assemblies
Product Warranty RegO 10 Year
Seat Material Type Soft
Units Imperial-Metric
