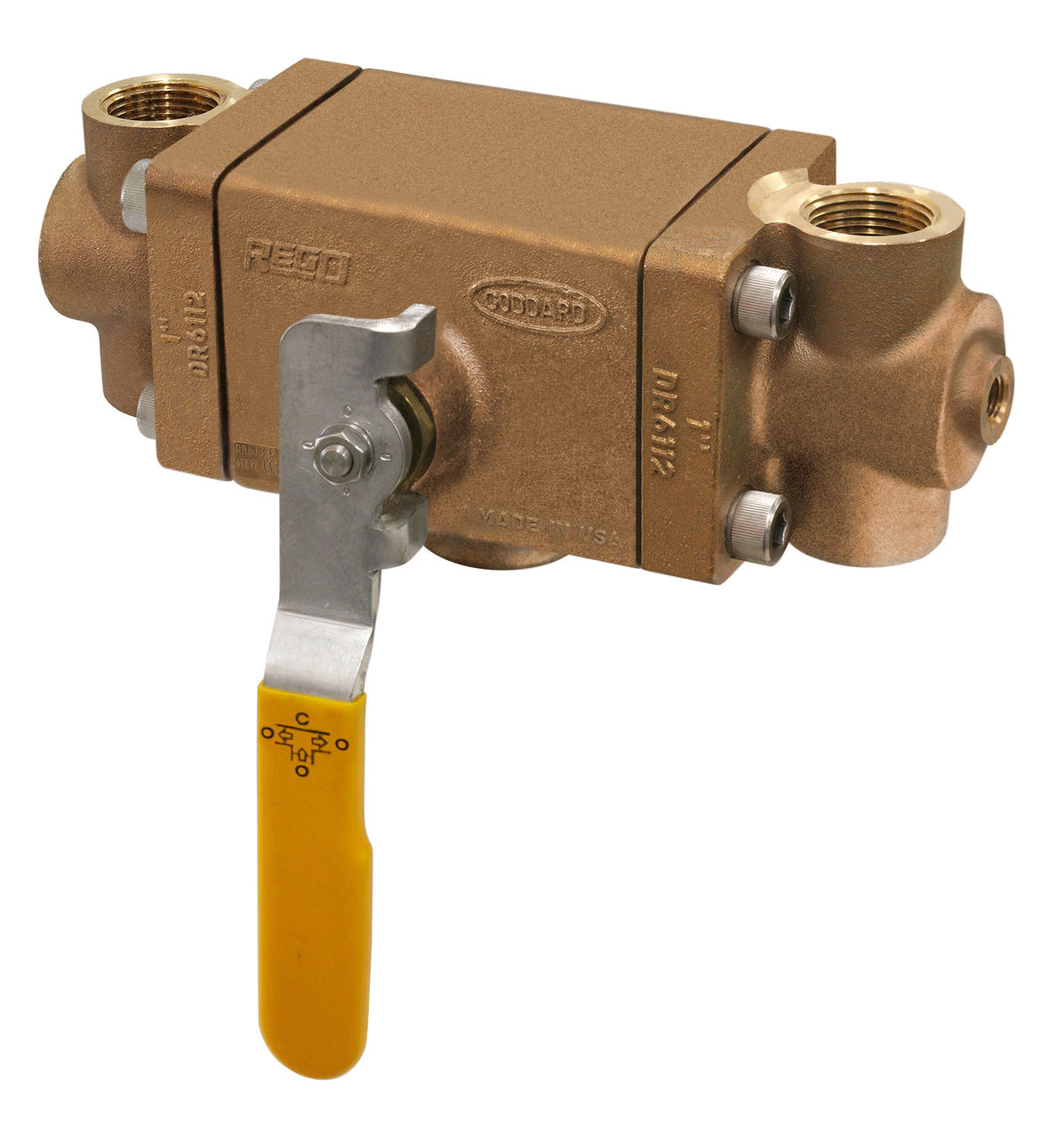

DR6112

Visit Product Series:

The DR Diverter Valve Series provides a simple solution for the isolation of pressure relief devices during routine change out of a relief valve and burst discs without evacuating the vessel. Excellent for protecting bulk liquid vessels, transport trailers, industrial pipelines, and LNG systems.

Markets
Applications
Height [Closed] (in.) 5.7
Height [Closed] (mm) 5.7
Inlet Connection (in.) 1½”
Inlet Connection (mm) 38.1
Maximum Allowable Working Pressure (BARG) 41.3
Maximum Allowable Working Pressure (PSIG) 600
Maximum Temperature Rating (°C) 74
Maximum Temperature Rating (°F) 165
Minimum Temperature Rating (°C) -196
Minimum Temperature Rating (°F) -320
Nominal Size (in.) 1-1/2"
Outlet Connection (in.) 1"
Outlet Connection (mm) 25.4
Weight (kg) 12.7
Weight Lbs. 28
Width [Face to Face, Diameter] (in.) 8.2
Width [Face to Face, Diameter] (mm) 209
Bonnet Type Bolted
Connection Type Thread NPT x Thread NPT
Inlet Connection (DN) 40
Material Details Bodies_: Bronze ASTM B61 UNS C92200| Bushing End Cap: Brass B16 C36000| Seat Rings: PCTFE ASTM D1430| Gasket: PTFE| Ball: 316 Stainless Steel| Lever: Cadmium Plated Steel| Packing: PTFE| Stem: Stainless Steel ASTM A582 UNS S30300|
Nominal Size (DN) 25
Outlet Connection (DN) 25
Product Type Brass Diverters & Diverter Assemblies
Product Warranty RegO 10 Year
Seat Material Type Soft
Units Imperial-Metric
