S-886-8S

Visit Product Series:

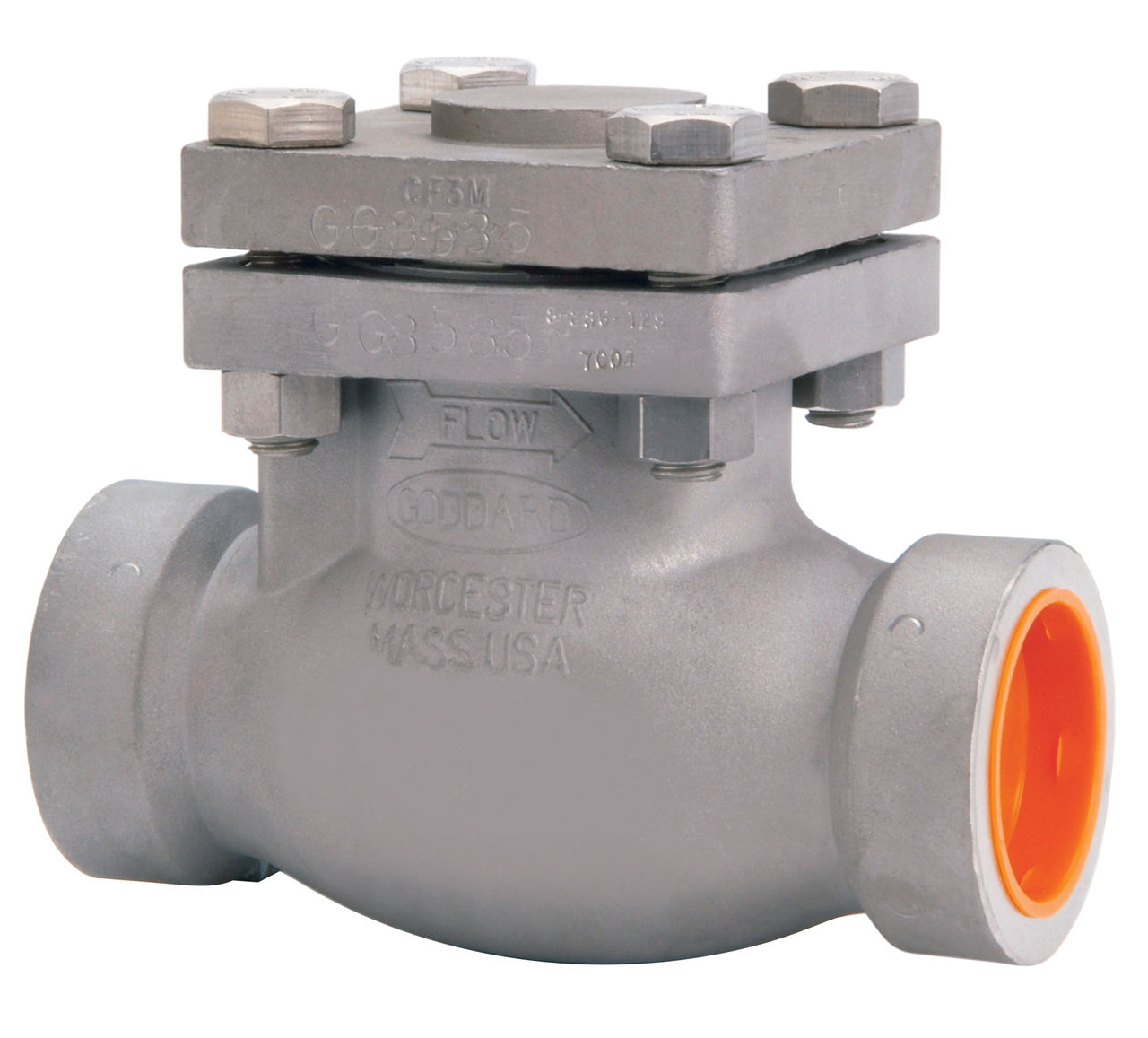

The RegO Goddard 886 Series check valve is designed for handling of cryogenic liquids through bulk tanks, trucks, trailers, ISO-containers and piping configurations. Compatible with Oxygen, Nitrogen, CO2 Argon and LNG.

Markets
Applications
Height [Closed] (in.) 3-1/4
Height [Closed] (mm) 82.55
Inlet Connection (in.) 1"
Inlet Connection (mm) 25
Maximum Allowable Working Pressure (BARG) 27.5
Maximum Allowable Working Pressure (PSIG) 400
Maximum Temperature Rating (°C) 66
Maximum Temperature Rating (°F) 150
Minimum Temperature Rating (°C) -196
Minimum Temperature Rating (°F) -320
Nominal Size (in.) 1"
Outlet Connection (in.) 1"
Outlet Connection (mm) 25
Weight (kg) 4.98
Weight Lbs. 11
Width [Face to Face, Diameter] (in.) 5
Width [Face to Face, Diameter] (mm) 127
Bonnet Type Bolted
Connection Type Socket Weld x Socket Weld
Cv 18
Inlet Connection (DN) 15
Kv 15.6
Material Details Body: Brass| Bonnet:Brass| Seat Disc:PCTFE|Stem Seal Gasket:PTFE|Handwheel:Aluminium|Spring:Stainless Steel|Stem:Brass|Poppet:Brass| Tube:Stainless Steel| Fitting:Brass
Nominal Size (DN) 25
Outlet Connection (DN) 25
Product Type Swing Check Valves
Product Warranty RegO 10 Year
Seat Material Type Soft
Units Imperial-Metric
