S-886-16W3A

Visit Product Series:

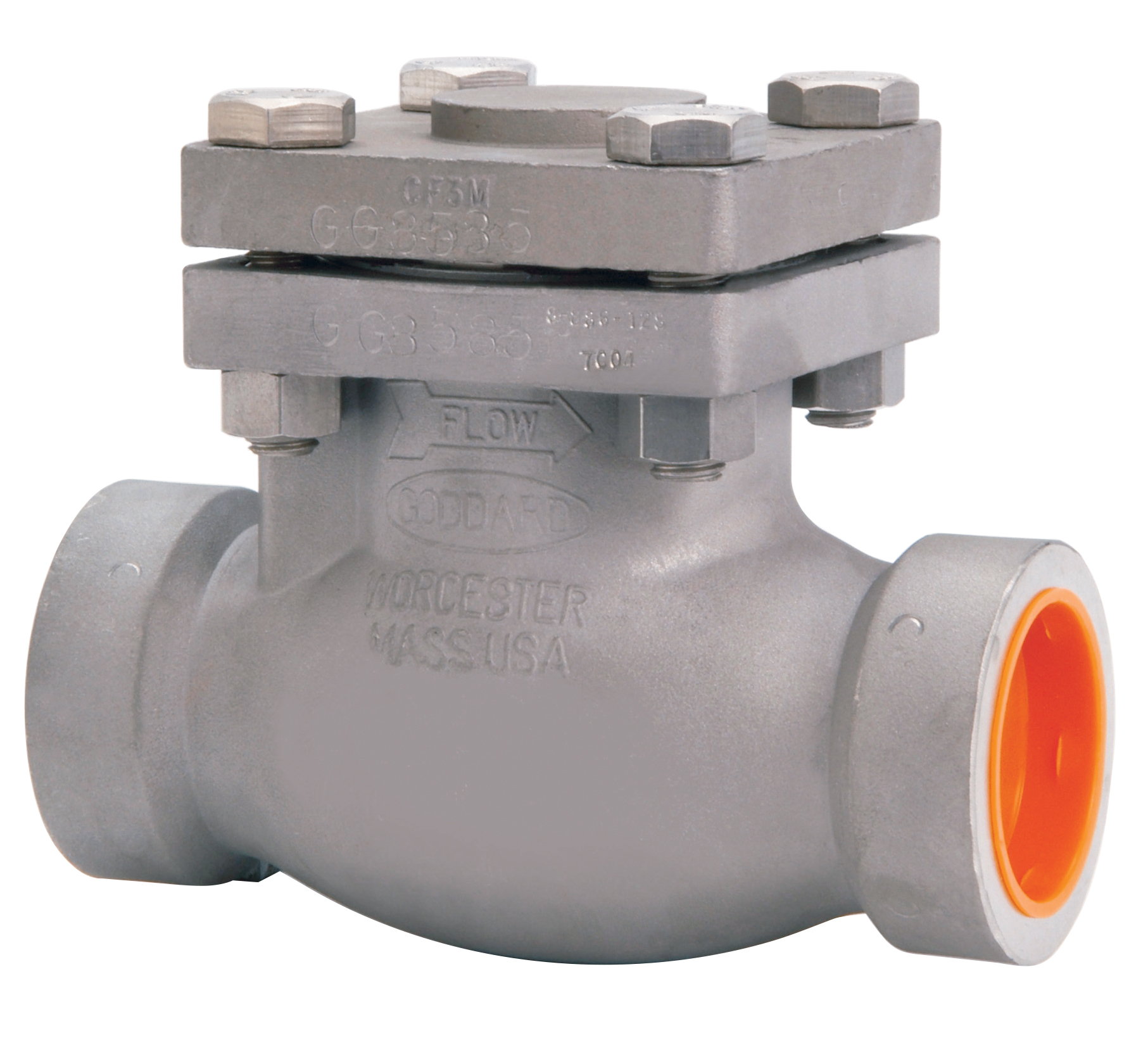

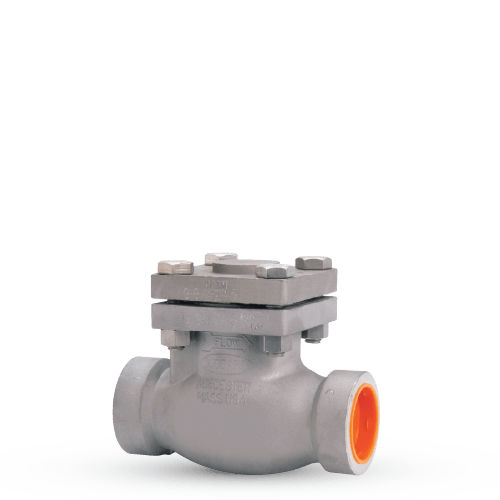

The RegO Goddard 886 Series check valve is designed for handling of cryogenic liquids through bulk tanks, trucks, trailers, ISO-containers and piping configurations. Compatible with oxygen, nitrogen, carbon dioxide, argon and LNG.

Markets

Applications

Certification

Documents

Installation Guides

Specifications

Height [Closed] (in.) 4.5

Height [Closed] (mm) 114.3

Inlet Connection (in.) 2"

Maximum Allowable Working Pressure (BARG) 50

Maximum Allowable Working Pressure (PSIG) 720

Maximum Temperature Rating (°C) +66

Maximum Temperature Rating (°F) +150

Minimum Temperature Rating (°C) -196

Minimum Temperature Rating (°F) -320

Nominal Size (in.) 2"

Outlet Connection (in.) 2"

Weight (kg) 7.7

Weight Lbs. 17.0

width_face_to_face diameter_english 8

width_face_to_face diameter_metric 203.2

Bonnet Type Bolted

Butt Weld Schedule 10

Connection Type Butt Weld x Butt Weld

Cv 99.0

Inlet Connection (DN) 50

Kv 85.6

Nominal Size (DN) 50

Outlet Connection (DN) 50

Seat Material Type Soft Seat

Features & Benefits
